Dual 30 amp rv's?

Yup.

Dtank wrote:

myredracer wrote:


We have a 30 amp TT and if I ever just had to have more power, like say for a 2nd AC,

I'd install a 20 amp power inlet on the side of our TT and run a 20 amp extension cord to the 15/20 amp recept. on a pedestal.

.

Like this poster did ??

.

myredracer wrote:


We have a 30 amp TT and if I ever just had to have more power, like say for a 2nd AC,

I'd install a 20 amp power inlet on the side of our TT and run a 20 amp extension cord to the 15/20 amp recept. on a pedestal.

.

Like this poster did ??

.

LarryJM wrote:


I did this mod in lieu of converting my trailer to a true 50A service feed because of the cost of conversion

and not wanting to wrestle that 50A Anaconda cord in colder weather.

The *Disneyland Adapter* is what it is - "Mickey Mouse"..:S

Wrestle the Anaconda:
Very easy solution -

#1.
12v powered or hand crank reel with MUCH more flexible 50amp cord.
Pull out how much you need, push button (or crank) to reel it back in.

Located in front compt - hardwired to power panel in basement.

OR

#2
Carry a shorter Anaconda - with quality cord.
Use when/where you can - also serves as an extension cord.

Either one is an "E Ticket" ride..:C

.

There are a few different "wye" adapters on the market for RV use.

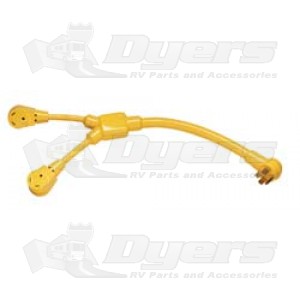

This one takes a single 50 amp recept. and splits it into 2 x 30 amp F which is the one OP is talking about. When would you ever need one of these?


This one takes 2 x 30 amp recept and turns it into a single 50 amp female. This one wouldn't work if someone is using the site nextdoor.


This one takes a 15 amp & 30 amp recept. and turns it into a 50 amp female. This one would leave you with a GFCI on one leg.

And then there is this adapter made by JTB that takes 30 amp and 20 amp pedestal receptacles and turns it into 50 amps. Their website says: will allow you to put the full 50 AMPS of service available at a Typical RV Park 30 AMP Power Pole to work in your RV, regardless of whether the 20 AMP auxiliary outlet is a GFCI or not. This is incorrect because you will only get 50 amps @ 120V, not the full 50 amp @ 120/240V.


There are no issues in having GFCIs in series other than you can't predict which one will trip on a ground fault. I have occasionally pondered the idea of installing a 30 amp GFCI main breaker in our panel am not sure if there is a downside to doing that.

We have a 30 amp TT and if I ever just had to have more power, like say for a 2nd AC, I'd install a 20 amp power inlet on the side of our TT and run a 20 amp extension cord to the 15/20 amp recept. on a pedestal.

joebedford wrote:

Golden_HVAC wrote:
modern RV parks use GFI receptacles

I have NEVER seen a 30A or 50A GFI receptacle. 15A and 20A yes, but that's not what OP is talking about.

This adapter might work for me: I have two 30A plugs on my garage for when friends come to visit. When my RV is there alone, I could plug my RV 50A plug into the adapter and have twice the power than with my dogbone adapter.

If you stay at the Trail of Tears State Park in Missouri, you will find the 30 amp receptacles are GFCI protected. I've also run into them in a few other parks, although I'll admit they are rare...

westernrvparkowner wrote:
Whatever that Rube Goldberg contraption is doesn't look any easier than just using the cord your rig was designed with.

Perhaps you missed the post that he's added a second 30A circuit to his rig for more power which of course no RV mfg would ever do. Better to convert his rig to 50A.

But he could just plug one 30A cord in the 30A plug and use a 50/30 adapter on the second 30A cord.

In spite of the picture with all of the looping wire I think he has a simple 50A male to 2 30A female adapters. With chain. :B

LarryJM wrote:

Redterpos3 wrote:
Was doing some "window" shopping on Camping World site, and saw a dogbone for dual 30 amp to a single 50 amp receptacle. Are there actually RV's that have 2 30 amp hookups??

Well I'm sort of confused on what you actually saw, but my trailer now has a dual 30A system feed by a 50A to dual 30A dogbone. I added the second 30A service feed and you can see all I did HERE. Below is a pic of the 50A to dual 30A dogbone I made ...



I did this mod in lieu of converting my trailer to a true 50A service feed because of the cost of conversion and not wanting to wrestle that 50A Anaconda cord in colder weather.

Whatever that Rube Goldberg contraption is doesn't look any easier than just using the cord your rig was designed with. Frankly it looks like Medusa's head of snakes. And what is the chain for, other than to create a spot where it can wear through the cable sheathing and deliver a nasty shock to the unaware?

#6 wire is generally fine to 60 amps.

Yes the adapter works but it has some potential serious issues. It shorts the 2 grounds and the 2 neutrals which means either one can be overloaded. Also since there is no dual CB either male plug when one is removed may be hot due to feedback from the RV.

It can also overload the rig neutral with up to 60A.

If I was a park owner I would not allow this adapter.

Golden_HVAC wrote:
modern RV parks use GFI receptacles

I have NEVER seen a 30A or 50A GFI receptacle. 15A and 20A yes, but that's not what OP is talking about.

This adapter might work for me: I have two 30A plugs on my garage for when friends come to visit. When my RV is there alone, I could plug my RV 50A plug into the adapter and have twice the power than with my dogbone adapter.
