Yet Another Pin Box Bike Rack - Many Pictures

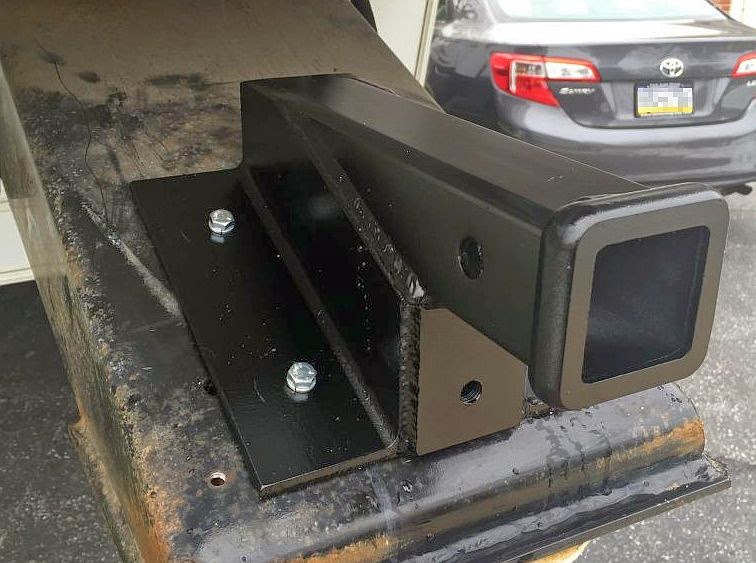

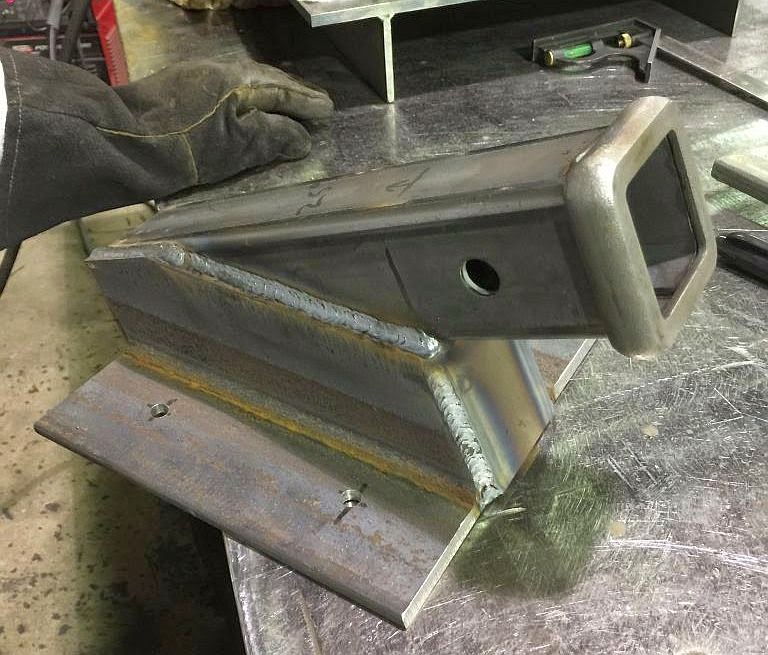

Well, there are a lot of pictures at the link. Here are just a couple of the step-by-step build pictures for my pin box hitch mount bike rack (with a pin box cover/shroud).







I've only done 1 drive with a single bike. I can't wait to see how it goes.

A special thanks goes out to lpxguy here on rv.net. I was able to click through his pictures on PhotoBucket where he had his pre-painted and mounted picture (http://s51.photobucket.com/user/GMtech45/media/IMG_01401_zpsd07ef2e6.jpg.html). That was able to show me the different pieces of the hitch he made and how it went together. I ordered a few things from Amazon (love free prime shipping!) and then it was setting my father-in-law off building like nuts.
  • ependydad's avatar
    ependydad
    Explorer
    Jan 14, 2015
    Well texasclarks doesn't want it, but since it's against the rules to advertise it here, I won't. :)
  • Cummins12V98's avatar
    Cummins12V98
    Explorer III
    Jan 14, 2015
    We just ordered a 15 MS 39TKSB3 and the bike rack mount will not work because the front cap sticks past the kingpin! I'm Bummed. So mine will be up for sale in about 3 months.
  • ependydad's avatar
    ependydad
    Explorer
    Jan 14, 2015
    texasclarks wrote:
    Beautiful! I think you could easily sell these to those of us without the skills (or tools) to DIY!


    I'll PM you... my camper has been sent off to get a new Trail Air/Tri Glide pin box. Which means, I no longer am able to use this bike rack as it is fabricated. :D :C

    I showed my father-in-law the pictures of Cummins12V98 hitch and we think that's what we're going to do. Just have to get the camper back first.
  • Cummins12V98's avatar
    Cummins12V98
    Explorer III
    Dec 04, 2014
    ependydad wrote:
    Thanks, Cummins! I'm definitely going to hold onto this as that's the pin box that I would like to upgrade to.


    Your are welcome.
  • byrdr1's avatar
    byrdr1
    Explorer
    Dec 03, 2014
    great mod thanks for sharing.
    oh yeah I am not a welder but I can tell your dad is and the welds are sharp.
    randy
  • ependydad's avatar
    ependydad
    Explorer
    Dec 03, 2014
    lpxguy wrote:
    I didn't have a machine shop to work in...but did have an employee....my 14 yo son.


    I was the "employee" but I'm more of a "gopher" ("go for" this, go for that...). Your 14 yo son did more in that one picture than I did with this project!


    jaycocamprs wrote:
    ependydad wrote:

    I think the latter may be able to be solved after my recent purchase of SteadyFast stabilizers. Their installation instructions and package included the appropriate size bit for self-tapping screws. It was still beyond my comfort zone and I had my FIL do it. :D

    I might used self-tapping screws at the bottom. But not at the top. There wont upward pulling force at the bottom, like there is at the top.
    You will like being able to see how bikes ride going down the road, but there isn't much to see. Ours hardly ever moved.


    I saw that already. I was pretty impressed. Mine is threaded bolts- we'll see how they hold up. The marketing/sales side of this will likely be on hold. :)


    lpxguy wrote:
    I had some side to side rocking due to slop between the rack & hitch tube so I got one of these & rocking is gone


    My Thule rack has a screw in place of a pin. It takes the slop out of the rack and receiver tube.
  • lpxguy's avatar
    lpxguy
    Explorer
    Dec 03, 2014
    I had some side to side rocking due to slop between the rack & hitch tube so I got one of these & rocking is gone
  • jaycocamprs's avatar
    jaycocamprs
    Explorer
    Dec 03, 2014
    ependydad wrote:

    I think the latter may be able to be solved after my recent purchase of SteadyFast stabilizers. Their installation instructions and package included the appropriate size bit for self-tapping screws. It was still beyond my comfort zone and I had my FIL do it. :D

    I might used self-tapping screws at the bottom. But not at the top. There wont upward pulling force at the bottom, like there is at the top.
    You will like being able to see how bikes ride going down the road, but there isn't much to see. Ours hardly ever moved.
  • lpxguy's avatar
    lpxguy
    Explorer
    Dec 02, 2014
    I didn't have a machine shop to work in...but did have an employee....my 14 yo son.
  • ependydad's avatar
    ependydad
    Explorer
    Dec 02, 2014
    Thanks, Cummins! I'm definitely going to hold onto this as that's the pin box that I would like to upgrade to.
