TV Tire Pressure Question

Here are his marketing badge & door lables

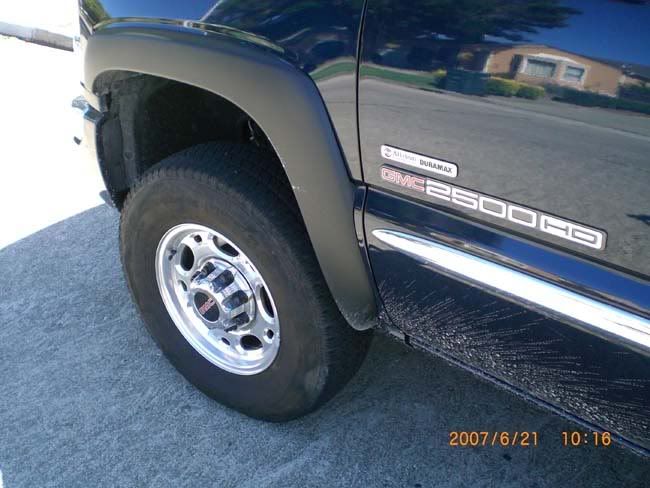

Marketing 2500HD badge

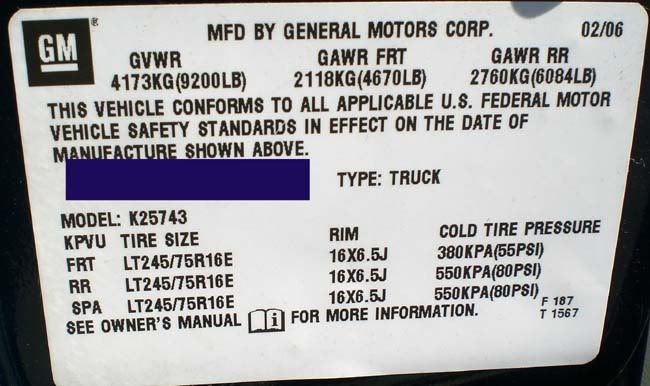

Door label with GVWR/GAWR

Marty, the OP has a 2015 Chevy 2500HD Double Cab with a +9K GVWR...1 ton SRW range,
not 3/4 ton range

Neighbor has a GMC 2500HD Duramax Crew and that has the 11.5" ring gear
(edit....or so he says)...and the small block gasser they also come with
might have the 10.5" ring gear (conflicting info in my searching)....

Same position I take on the half ton HD and refer to them as the fake half ton

The +10K GVWR are duallies, or that all the I've come across (was looking but
I'll keep my Sub for a while longer...)

Ben,

How do you know the new truck is a 1 ton? does it have a gvwr over 10001 lbs to 14K lbs? if so, yes it is a DOT class 3/1 ton truck. If it is int he 6001-10000 lbs range, it is a dot class 2, or 3/4 ton truck. Pretty simple.

On the other hand, if one wants to use the sum of the axel components vs the manufacture derated number, the OP's new truck is a dot class3, his old truck a LD DOT class 2 in the 6001-8400lb gvw range.

marty

Am assuming the OP is now talking about his 'new' 2500HD (fake 3/4 ton,
it's a 1 ton)

This is a higher class truck than your half ton. The 'HD' suffix takes
it into 1 ton territory

The truck is heavier just sitting there with nothing loaded in/on it

Notice where the half way point is...on most TV's it is at the drivers
door's rear edge.

Meaning most of the stuff loaded in/on it will have 'most' of that
weight on the TV's rear axle

Then that this is several thousand pounds more in initial weight
and capacity...it will need higher class tires than your half ton
and need more PSI

You need to change your half ton metrics (+6K-7K GVWR) to your new
+9K GVWR truck's metrics

On the spare...do you know which tire position will need it? No one
does, so air it up to the max any one of the four on the ground would
ever have...if it goes to one where it has less PSI...just let out
PSI...much tougher to air them up out there in the boonies...

I thought it was a little odd the door sticker says to have 60 pounds in the front tires and 70 in the rear. I can understand it while towing or with a heavy payload but for everyday use with an empty bed it seems a little extreme. More odd to me is the recommendation to have 80 pounds in the spare!

Forget the sticker on the door and use the PSI on the sidewalls.

Good choice. You should still do a chalk or tape test to determine the best pressure when running empty. If you run the door sticker pressure on the rear tires all the time they'll probably wear pretty quick in the middle. (I know mine did.)

I had a change of plan. I traded in my F150 for a 2015 Chevy 2500HD Double Cab and it has LTX M/S2 tires so I'm all set for now. Thanks to all that posted!

I just put on LT tires on my 12 1500 Silverado and i'm towing approximately 6500lbs. I was told to run 40 non towing and 45 towing and that is what i'm doing. It handles great in my situation.

Those are LT tires. When I had my F150 I ran some LT Michelins. I ran the door PSI unloaded and ran 45PSI towing. Discount Tire said 44 PSI was all that's needed to match the trucks RAWR. I tried 50 PSI a couple times and there was really no difference and the ride was harsher.
