12V power into the bed?

Thanks for the suggestions.

I only ran from battery to the front of the grill so I was able to keep my load/amps I needed safely on the 2/0 cable. Your run will be much longer. I opt to run my inverter on the front when tent camping, and being a diesel I can just let it idle or put the tune on high idle for higher alternator output. Good Luck!

Well that didn’t work, let’s do this:

And here is a link to the Ampacity chart- it is for Marine use but actually they have stricter codes than Auto.

http://assets.bluesea.com/files/resources/newsletter/images/DC_wire_selection_chartlg.jpg

If your expecting a high amp draw you need a whole separate power feed from your electrical system. I installed a 17,500 lb. winch on my 2002 F350. I will include a picture to give you some ideas how to supply power and isolate. Here’s a quick list of materials I used:
•Blues Seas Disconnect- rated 500 Amps
•Spartan ANL fuse holder- I have fuses ranging in 200, 300, 350, 400, 500 depending on my use: winch or inverters.
•2/0 welding Cable
•Quick disconnect plugs

Check your wire size and Ampacity and resistance drop for your length of run from your battery to your bed.

I did this on mine and added the disconnect as a safety function in case of front collision.

Here's how I did it.Heavy duty charge circuit

joebedford wrote:
OK that's one of the ones I found. Do you push the red button to trip the breaker then later use the lever to set it?

Yes, that's how it works.

With 12 volt, you have have a lot of current loss with length. How about adding batteries to the bed and tying them into your rv charging system?

OK that's one of the ones I found. Do you push the red button to trip the breaker then later use the lever to set it?

The breaker never tripped with my cappuccino or microwave.

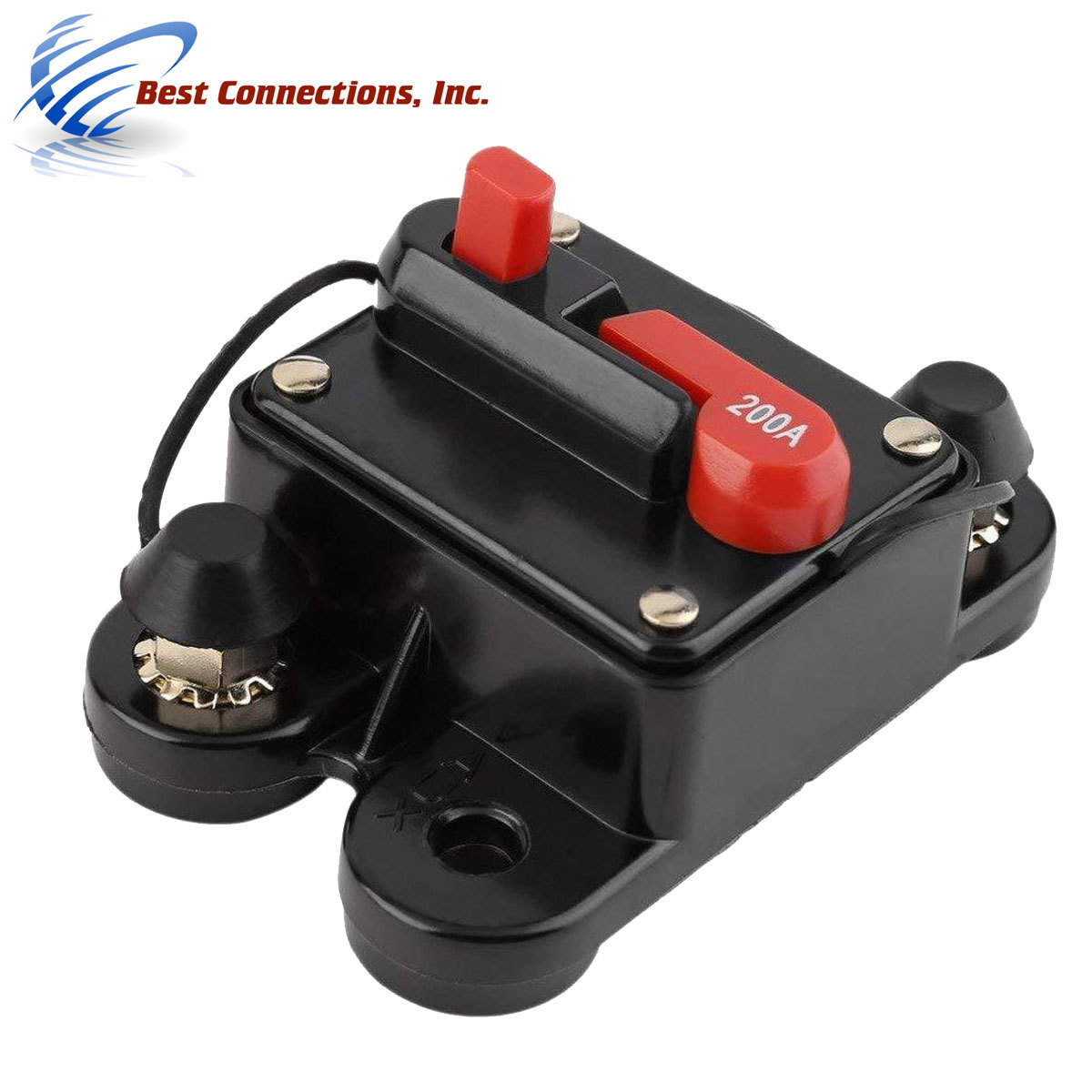

Here is 200 amp in the same design.
HERE
