frame flex weld failure

tgreening wrote:

davidbrugger wrote:
http://s1056.photobucket.com/user/David_Brugger/library/Frame%20Failure

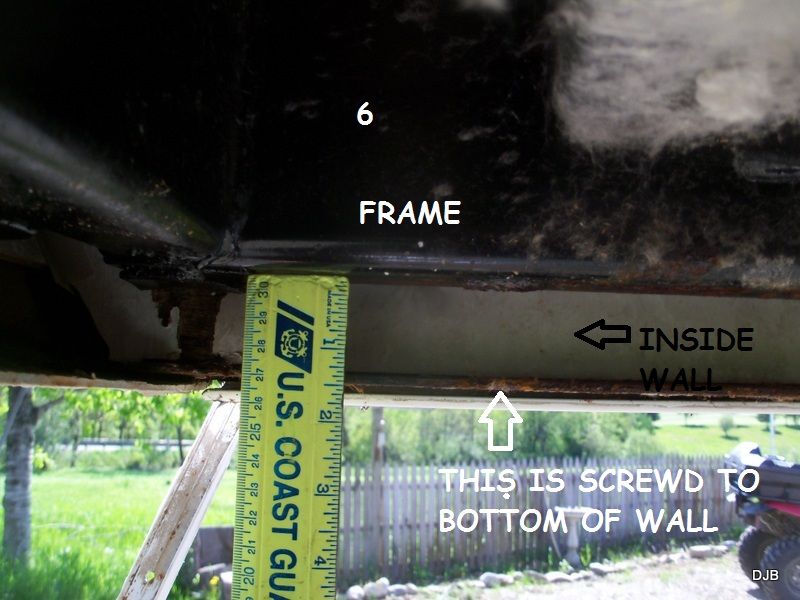

well looks like I have a problem, any info is appreciated above link shows all pics


[img][/img]

If I were you, and this far into it, I wouldn't stop at just rewelding what is there. I'd have a few sections of C-channel made of the proper thickness to wrap around the top of the frame and under the flat strap holding the wall up. Weld in place as needed.

||
||
||___
-----



The vertical is your wall. The lower dotted horizontal is the flatstrap screwed to it. The solid horizontal is the frame structure the flatstrap is welded to. Wrap those two with the c-channel.

I'd use multiple short sections of channel per side instead of one long one.

Hopefully my poor little diagram up above will get my point across.


Well, it looks fine in the editor but gets all wonky when its posted. If it doesn't make sense maybe I can explain it better verbally.

Thanks TG for looking your drawing is clear and makes sense. This would provide more support as I cant weld both side with out taking walls off. taking walls off just is not an option. Still waiting to hear from Keystone.I have heard they might step up, but we will see.

greende wrote:

hammer21661 wrote:
So the shell fell down not the hitch ( goose neck frame ) broke and went up?

That's the way I see it. Unfortunate but better than the frame failing. The pics look like it's a piece of strap steel holding the wall up. Agree that they were asking a lot for mild steel and short welds. Sounds like OP has a good plan to weld both sides.

yes better than the frame

greende wrote:

hammer21661 wrote:
So the shell fell down not the hitch ( goose neck frame ) broke and went up?

That's the way I see it. Unfortunate but better than the frame failing. The pics look like it's a piece of strap steel holding the wall up. Agree that they were asking a lot for mild steel and short welds. Sounds like OP has a good plan to weld both sides.

cant weld both sides without taking side wall off. So I believe.

I have a Cardinal and there is nothing welded in that area. They believed that the weight of the walls would hold them to the frame so it had a few screws through the frame into the walls. I drilled and installed scrwes about 2" apart on both sides. Everything has been fine for over 2 years now. The walls on the Cardinal sit on top of the frame, so I put the trailer on the truck, raised the jacks and the gap closed before I installed the extra screws.

What brand of trailer is this? I have a forest river product and had some problems with frame flexing also.

davidbrugger wrote:
http://s1056.photobucket.com/user/David_Brugger/library/Frame%20Failure

well looks like I have a problem, any info is appreciated above link shows all pics


[img][/img]

If I were you, and this far into it, I wouldn't stop at just rewelding what is there. I'd have a few sections of C-channel made of the proper thickness to wrap around the top of the frame and under the flat strap holding the wall up. Weld in place as needed.

||
||
||___
-----



The vertical is your wall. The lower dotted horizontal is the flatstrap screwed to it. The solid horizontal is the frame structure the flatstrap is welded to. Wrap those two with the c-channel.

I'd use multiple short sections of channel per side instead of one long one.

Hopefully my poor little diagram up above will get my point across.


Well, it looks fine in the editor but gets all wonky when its posted. If it doesn't make sense maybe I can explain it better verbally.

hammer21661 wrote:
So the shell fell down not the hitch ( goose neck frame ) broke and went up?

That's the way I see it. Unfortunate but better than the frame failing. The pics look like it's a piece of strap steel holding the wall up. Agree that they were asking a lot for mild steel and short welds. Sounds like OP has a good plan to weld both sides.

So the shell fell down not the hitch ( goose neck frame ) broke and went up?
