My coach has some 24V fans running with 12V power and I would like get them the full 24V they are rated at as there is also a speed controller I can use to control the speed and noise (Country Coach set it up this way to keep the sound down).I have seen some setups online but don't really quite get it. I will have 1 12V input with a good size wire and it would need to output 24V (18-24V) so I can get some additional "blow" from the fans. The output will go to 3 squirrel cage type fans in my diesel heat (Webasto) fans. I have good access to the input and output wiring so if I can find the right device it should be pretty simple to setup. It's also in a fairly open cabinet so heat dissipation should not be an issue if these things create heat.

Bill, don't know if you have done an Amazon search yet but mine turned up several posibilities depending on the max current you require.

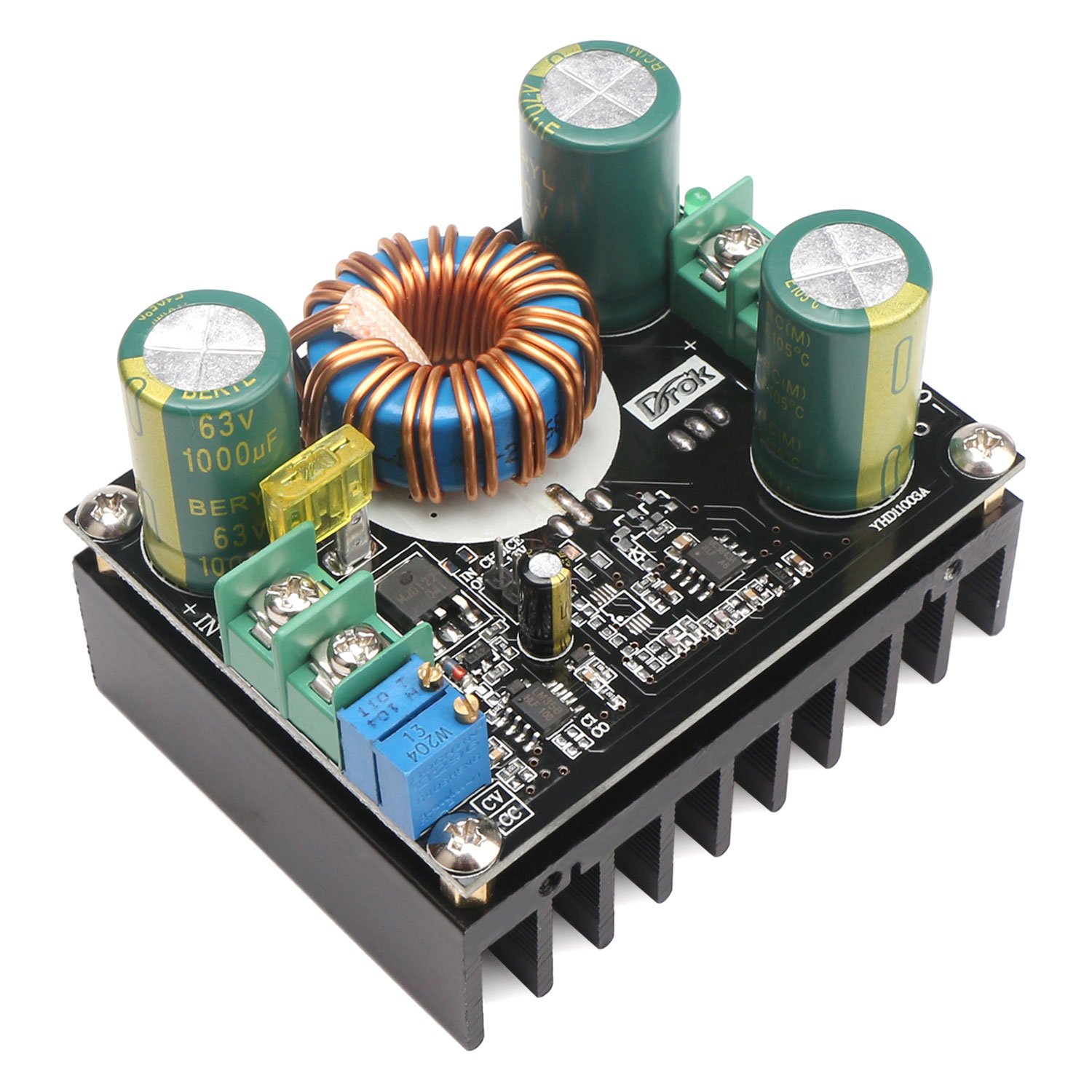

Unavailable at the moment on AMAZON. I use these critters and they have proven reliableBUT\The CURRENT control network is near useless.\Which would not be an issue in your caseDROKDROK DC/DC Boost Converter 12-60V to 12-80V Step-up Voltage Regulator 600W Auto Power Supply Transformer Adjustable Output Volt Controller Stabilizer Board Laptop Motor3.3 out of 5 stars 16 customer reviews| 5 answered questionsCurrently unavailable.We don't know when or if this item will be back in stock.Specifications for this itemPart Number 090499Measurement System USUPC 619397028094Brand Name DROKEAN 0619397028094Model Number 090499Number of Items 1UNSPSC Code 39121006

Are these fans some special size? Would it be simpler to install 12v fans?

I like Drock devices, i have several in the SafariYou can also find them on eBay

Drock voltage booster regulatorDROK 600W 12A DC Boost Voltage Converter 12-60V to 12-80V Step-up Power Supply Transformer Module Regulator Controller Constant Volt/Amp Car 150w $12.94600w $21.49

Easy way to take 12V input and create 24V output

12 Replies

MEXICOWANDERER
Explorer
Oct 04, 2017
That's the beauty of something like the DROK. Adjust the regulated output to 28.4 volts if you wish. I would however mess with the fuses and protect the circuit well ahead of the regulator with an easy to access fuse --- just in case. Mount flat not vertical. School of hard knocks --- 12F temperature difference on the heat sink with a sizeable load. The full-width heat sink of the DROK makes it a very appealing device.
Bill_Satellite
Explorer II
Oct 04, 2017
The fans already have 3 speed settings which is why them using 24V on a 12V system was silly from the start. With a 12V input the fans blow a gentle breeze but sometimes when it's really cold I would like to get a bit more of a blast of heat for a quicker warmup.
GordonThree
Explorer
Oct 04, 2017
I have a few similar to this in operation, mine are any volt to 12v buck/boost modules however:

Link 12V TO 24V 10A STEP UP BOOST DC DC CONVERTER 10AMP H10-12-24 Daygreen US Ship

Pros:
- rugged cast aluminum heat sink case
- fully potted with silicone
- inexpensive

Cons:
- not adjustable
- no way to inspect internal components
DrewE
Explorer II
Oct 04, 2017
accsys wrote:
Since you have access to the input wiring you could use an ammeter to measure the current draw and then double it since you will doubling the voltage.

Fans are not purely resistive loads, so this isn't all that precise. It would give a rough estimate at least. The startup current draw for the fans is likely a little higher than their running current, maybe quite a bit higher; rounding up in the current requirement would be a decent idea.

If one gets a variable boost supply, the fan speed could presumably be controllable, which might be handy.
accsys
Explorer
Oct 04, 2017
Since you have access to the input wiring you could use an ammeter to measure the current draw and then double it since you will doubling the voltage.
Bill_Satellite
Explorer II
Oct 04, 2017
Hum...max current....I wonder how I can figure that out. It doesn't seem like it should be that much as it would only be 2 small squirrel cage fans.
Thanks folks, I will take a look at the DROK setups.
Bill_Satellite
Explorer II
Oct 04, 2017
GordonThree wrote:
Are these fans some special size? Would it be simpler to install 12v fans?

They are special and they are nearly impossible to access without pulling dash apart and disconnecting the water lines circulating the hot water throughout the coach.
If I could find the fans I might give that a try as well but I have had not luck finding them.
MrWizard
Moderator
Oct 04, 2017
Drock voltage booster regulator

DROK 600W 12A DC Boost Voltage Converter 12-60V to 12-80V Step-up Power Supply Transformer Module Regulator Controller Constant Volt/Amp Car

150w $12.94
600w $21.49
MrWizard
Moderator
Oct 04, 2017
I like Drock devices, i have several in the Safari

You can also find them on eBay
GordonThree
Explorer
Oct 03, 2017
Are these fans some special size? Would it be simpler to install 12v fans?
